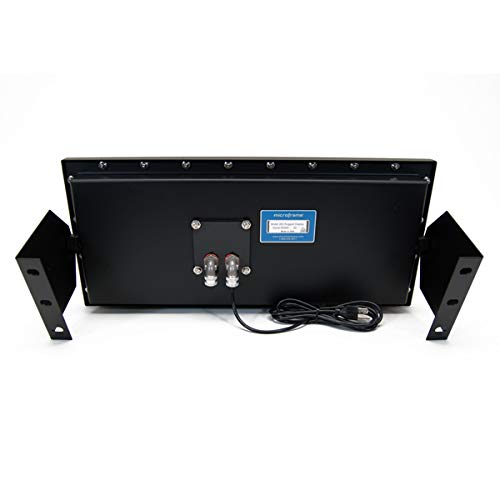

Microframe 6-Digit Rugged Computer-Controlled Display

The Microframe Model 265, 6-digit ruggedized display includes a standard 115 AC input. The 12-gauge steel case and 1/2-inch Lexan protects the display from harsh environments. It will operate with any standard RS232, RS485, or 20 mA current loop input to provide Remote Display capabilities for a computer, PLC, or scale display. The Model 265 Display contains Ultra-bright LEDs configured in 5.5-inch tall digits viewable up to 125 feet in standard light or 75 feet in bright sunlight. Operation Your computer passes numbers and a carriage return (ASCII 13D ), and then the numbers will be displayed on the Model 265 scale display. To display a blank screen, pass a carriage return (ASCII 13D). Insert the decimal point in the number string and it will light. Include a colon in the number string to light the colon for that number. Leading zeros will be blanked if the user-selectable option is enabled.

• High-bright LEDs mounted inside ruggedized 12-gauge Steel outer casing
• 1/2-inch Lexan Polycarbonate Faceplate. Tough, impact-resistant, virtually unbreakable material
• Powder coated steel case and mounting brackets connected to 3/4-inch welded mounting nuts
• Utilizes TYPE 304 & 18-8 Stainless Steel hardware; Liquid-tight fittings on the back-panel for external wiring access
• Communication input options - RS232, RS485, & 20ma current loop compatible
